ae85 dash loom?

[Nizbit]

hey guys, i have a few wires that i need to transfer to the sr20de loom,
just wondering if anyone has the pinouts or the diagrams to show me what they're for,




cheers

[frost]

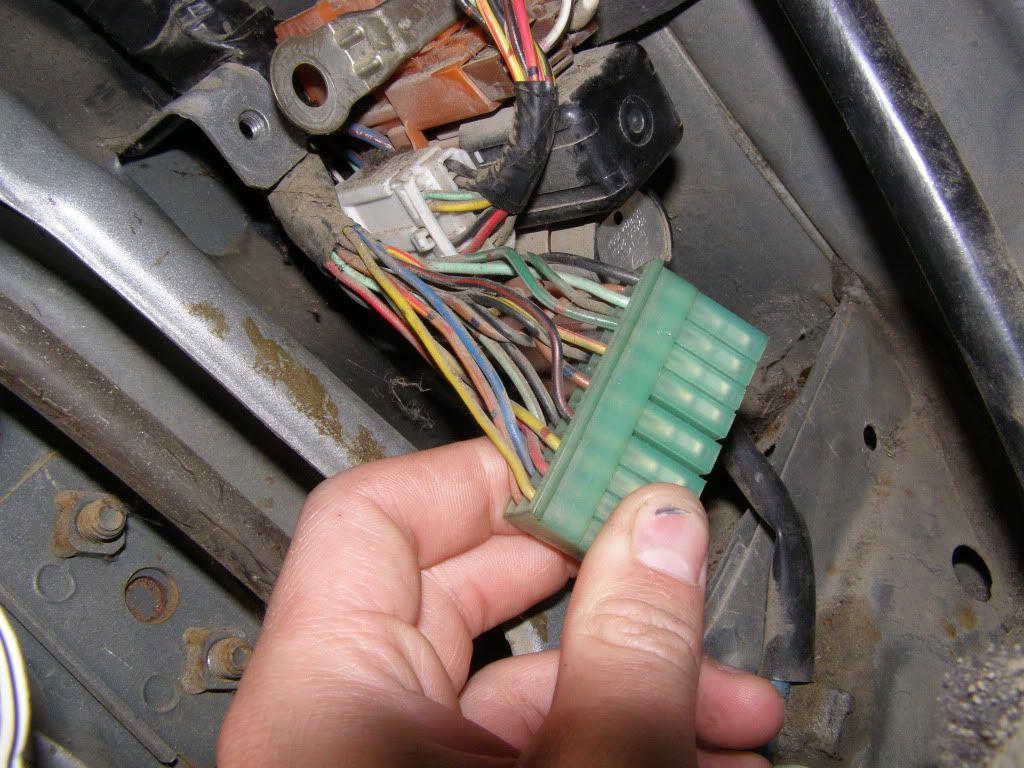

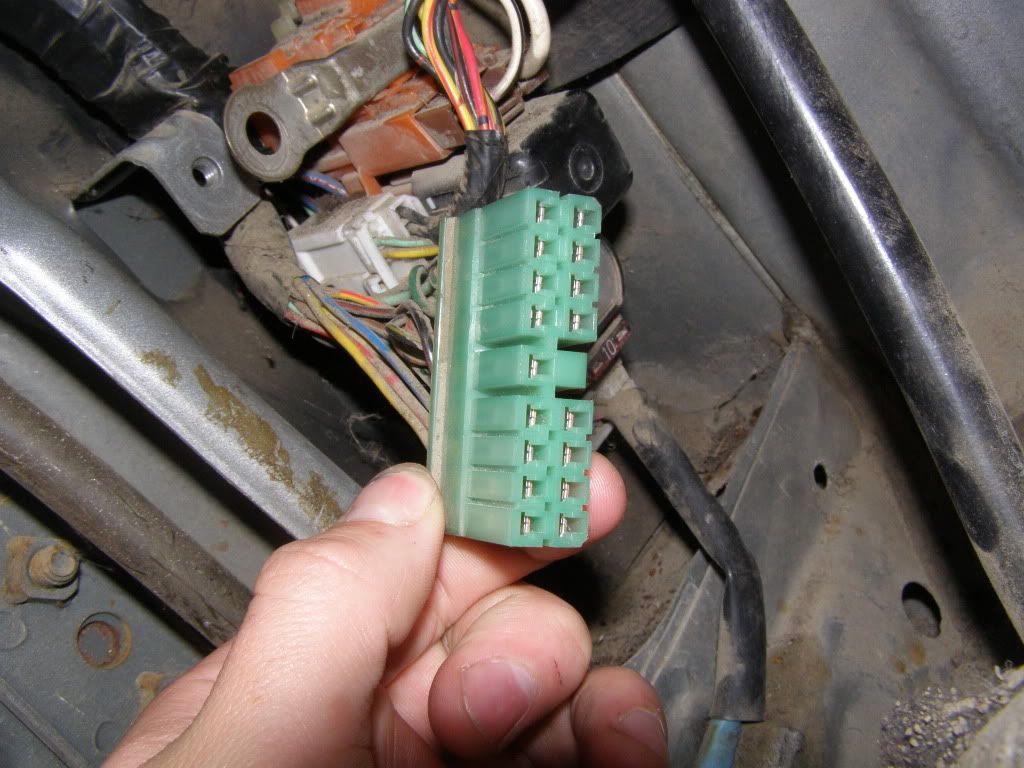

the long green one is for emissions control ecu, can be unplugged without any ill effect,
you can find a useful.....
speed signal
rpm signal
batt+ and 12v switched power from it,

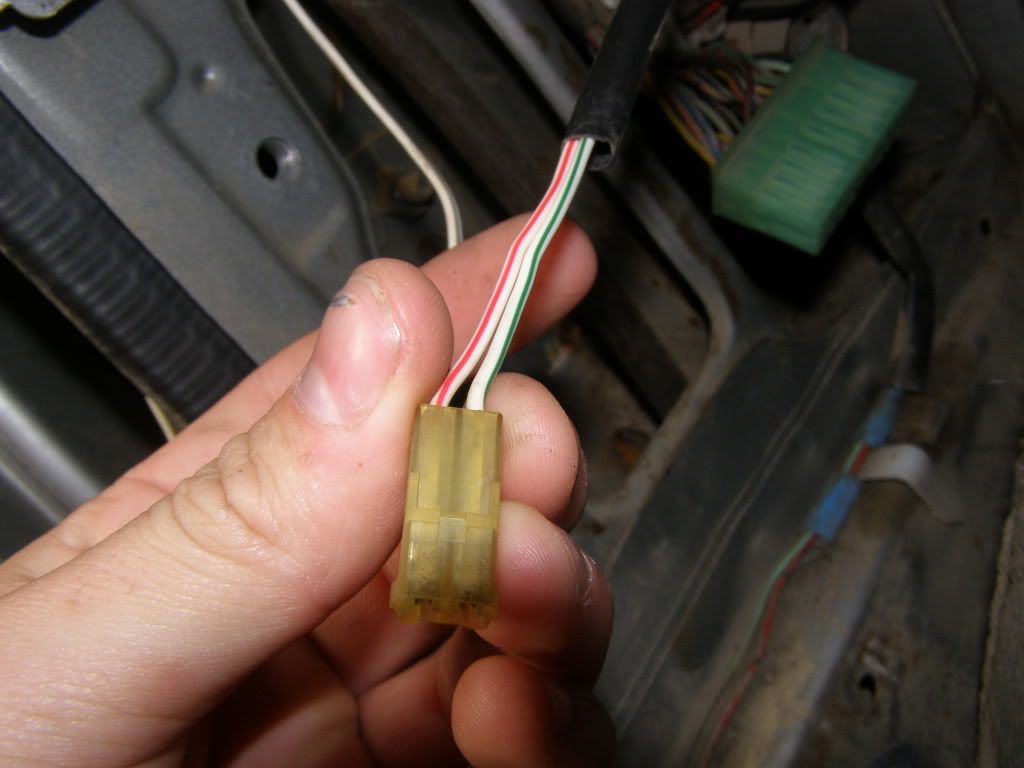

cant remember what the small one is for just yet, will have a look tomorrow,

[matt dunn]

cant remember what the small one is for just yet, will have a look tomorrow,

i think it also went into the same emissions ECU.

[Rick]

Just double check the wires to whats on your cluster, you can check by tracing it on the circuit board on the back of the cluster.

[Nizbit]

ok sweet, hopefully i can work out the main ones i need (i.e. oil pressure, water temp) from the green plug,

Just double check the wires to whats on your cluster, you can check by tracing it on the circuit board on the back of the cluster.

is this looking at it from the back? i.e. no.1 will be on the white plug under the rev counter? it doesn't seam to match up

also where can i hook into for the rpm? cause i can't see it on that diagram
cheers

[dusk93]

By looking at the diagram I vote pin #15 as RPM come from Tachometer.

[Bling]

15, tacho

Edit beaten

[Rick]

here is another pic for a analog to digital conversion again double check against your cluster.
